HOUSINGS

Products

---- Filter Housings ----

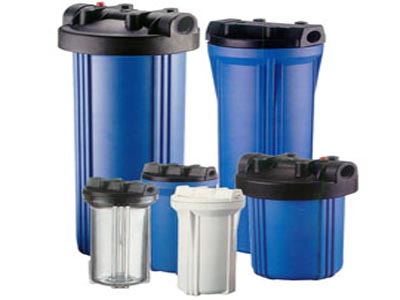

PP Housing

  • Standard and Jumbo housings are manufactured of polypropylene.
  • Leak proof sealing accomplished by cap impression against top seated 0 ring insump.
  • The square thread closure allows for years of cartridges change out without failure.
  • These PP Molded Filter Housing are jdea l subst itute for costly low pressure stainless steel vessels.
  • The larger body size allows for extra- arge cartridges & high flow rates.
  • The larger body size allows for extra- arge cartridges & high flow rates.
Connection Suitable For 2.5" Cartridge - 1/2", 3/4", 1"
Connection Suitable For 4" cartridge - 1" ,1'1/2"

PP Housing
Di> [INCH ) 2.S 2.S 4 4
Height (INCH) 10 20 10 20

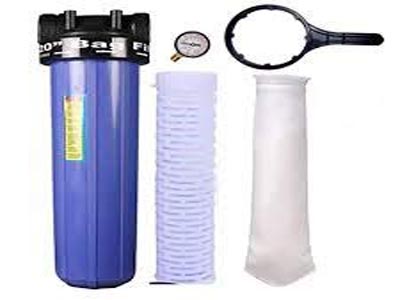

PP Bag Assembly

PP Spun Filter Cartridge
Di> [INCH ) 4.S 4.S
Height (INCH) 10 20

  • The series bag vessels are made of light weight corrosion resistant PP to give all strength required without being bulky.
  • The fixed head mounting & compact design makes it easy to mounttoany machine.
  • All the PBA models are supplied with Pressure gauge,wrench & drain Configuration.
Connection - 1.5" BSP Fema le Thr eaded connection
Flow Rate: - 100 LPM for raw water with operating pressure of 2.5 BarConnection - 1.5" BSP Female Threaded connection
Flow Rate:- 100 LPM for raw water with operating pressure of 2.5 Bar

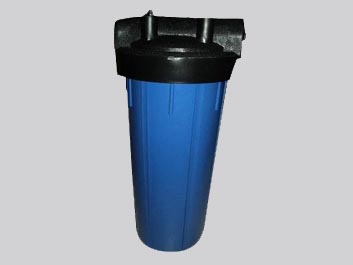

Excel Jumbo Housing

As a customer-oriented company, we "M R Filter" specialise in manufacturing and supplying a wide range of Excel Jumbo Cartridge Filter Housing in India. These are made with the highest quality materials sourced from the organization's trusted vendors. These are often used in a variety of professional and non-professional settings. We give these ranges at very reasonable price ranges in order to understand the greatest accomplishment of clients.

Details:

Polypropylene is a type of plastic. Ruffed reinforced polypropylene makes up the Jumbo Excel Housing. Higher flow rates are recommended for a variety of applications, including residential, commercial, and industrial.

Excel Jumbo Housing
Usage
  • Water Treatment plant
  • Packaged Drinking water Plant
  • Food & Beverages Industry
  • Pharmaceutical Industry
  • Chemical Industry
  • Electroplating Industry

---- UPVC Housings ----

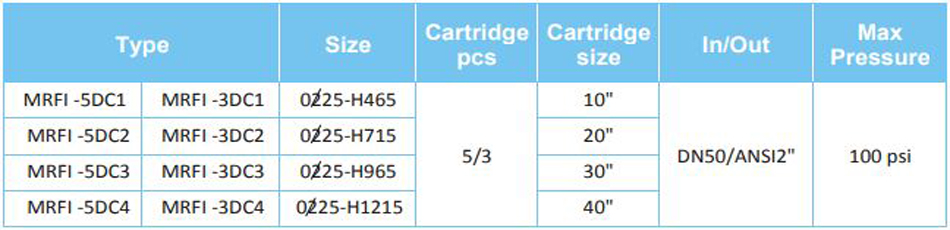

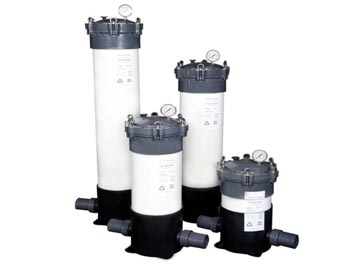

UPVC Micron Filter Housing

MRFI UPVC Filter Housings combine design simplicity with high filtering quality. UPVC Filter Housing offers wide range of flow capacities & contaminant holding capacities. Cartridge filters are normally used as polishing filter in almost all process industries.
It can install all material, all precision's cartridge 5 pcs,which 1.0.is 28-30 mm and 0.0.is 65-70 mm. The highest working temperature is 50'c. The size of the two holes in cap is 1/4" BSP threaded. On the cap,one side pressure gauge is mounted and on another side vent is mounted.

UPVC Micron Filter Housing
PRODUCT MERITS
  • All the parts of this series filter are made of UPVC.
  • The inlet and outlet are in the same line, which connected with the pipe is adopt a 2" union.
  • The distribution system of MRFI filter is distributed form bottom to top. Water is well proportioned with smallstrike to cartridges are easy to be installed and air is easy to be discharged.
  • A series: the lid and the body are connected using flangemethod; ensure the housing can stand higher pressure.
  • MRFI l filter is corrosion resistant. It can be used SS-non-replace field.
APPLICATION:
  1. Pharmaceuticals
  2. Petroleum Derivatives
  3. Water Treatment
  4. Coolants
  1. Paints & Inks
  2. Food & beverages
  3. Bore Well water
  4. Dairy
  1. Cleaning Fluids
  2. Lacquers
  3. Vegetable Oils
  4. Many More
PP Spun Filter Cartridge

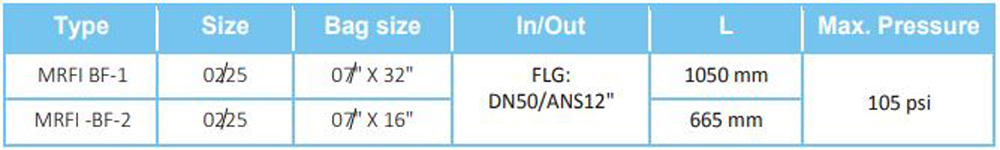

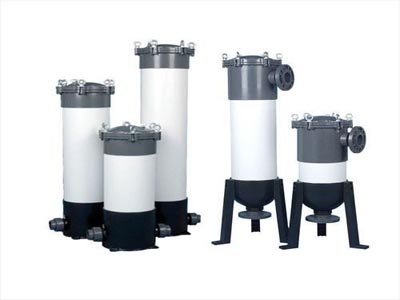

UPVC Bag Filter Assembly

PP Spun Filter Cartridge

UPVC bag filter housing provide an economical alternative to stainless steel. Bag filter systems are designed for high flow rates and high sediment holding capacity. Its range provides filtration solution for a broad variety of fluid applications in the process industry. They are particularly useful for filtering large volumes of high viscosity liquids.

OPERATE ELEMENT:

The liquid which will be purged into the filter bag from the inlet, then the liquid flow from the inner surface to the outer surface.At last, ii will be come into the appointed tank. On reverse, the impurity will be held up in the bag. The filter canberecycledwhen changed another new bag.

Applications :
Processing Chemicals Cleaning Fluids
Paints Lacquers
Petroleum Derivatives Vegetable Oils
Inks Pharmaceuticals
Coolants Edible Oils
Resins Sugar Syrup
Cutting Oils Polymers
Varnishes Plastsols
PP Spun Filter Cartridge
