WTP COMPONENTS

Products

FRP Vessels

The FRP Pressure Vessels are made up highperformance composite material with filament winding. All Pressure Vesse ls are 100% corrosion resistant with Thermoplastic Liners of Polyester. These are NSF & PED Certified.These are widely used for Pressure Sand Filters,Softeners,Mixed Bed,De Mineralizationand Carbon beds.

8 x 35 25 2.5"-TOP
8 x 44 34 2.5"-TOP
10 x 35 40 2.5"-TOP
10 x 54 63 2.5"-TOP
12 x 48 89 2.5"-TOP
12 x 52 97 2.5"-TOP
13 x 54 105 2.5"-TOP
14 x 64 150 4"-TOP
16 x 65 185 4"-TOP
8 x 35 25 2.5"-TOP
8 x 44 34 2.5"-TOP
10 x 35 40 2.5"-TOP
10 x 54 63 2.5"-TOP
12 x 48 89 2.5"-TOP
12 x 52 97 2.5"-TOP
13 x 54 105 2.5"-TOP
14 x 64 150 4"-TOP
16 x 65 185 4"-TOP
PP Spun Filter Cartridge

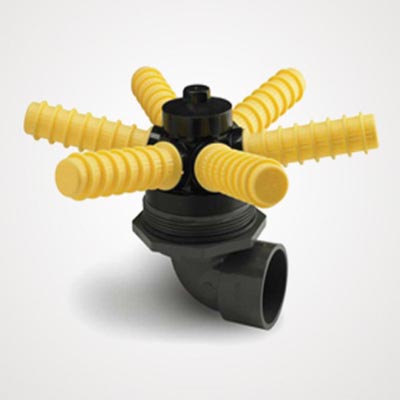

Distribution System

Our distribution & collection system are suitable for any makes of FRP tanks various dia orders from 13" to 79".These system can be used for standard opening 4"-threaded and 6" flanged and with only top or top & bottom openingThe Specially designed Vacuum Breaker prevents air lock in the system savingloss of damage of vessels being crack due to vacuum or result leakages in the line.

Specification

Strainers startingfrom 14" to 63" with connections from 2.5" threaded to 6" flange. Flow range: -lm3/h3 to 40 m3/hr.

Distribution System

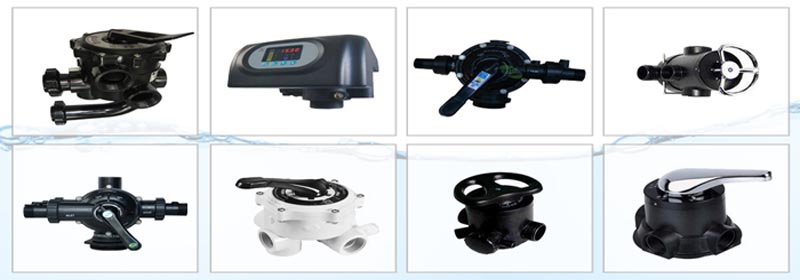

Multiport Valves

MPV are made from wear resistant, high hardness ceramic disk that provide longer service life. Innovat vely designed,easy to handle,also excellent sealcapability preventing internal leakage. By just clockwise and anti-clockwise rotating of handle multiple functions can be performed such as filter,back wash,rinse,brine suction Etc.

Specification:

1/2 to 2.5 - Top & Side Mount valve for Filter and Softer application.

Multiport Valves

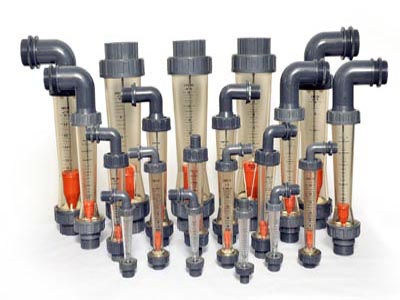

Rotameters

Rota meters are sturdy and compatibletype flow meters. Its Poly Sulfone (PSU) /Polycarbonate (PC) body,PVDF floats make it compatible for a very high range of pH the strong UPVC union / Elbow provides ease of installation and also economical and durable. Dueto the non-metallic float material the FMseries highlight ZERO corrosionin the internals.

Rotameters
12-60 DN Range Online Panel
FM 15 15 25.250
40-400
60-600		 1/2" BSP F 1/2" BSP M
FM 15 25 0.1-1
0.16-1.6
0.25-2.5 		3/4" BSP F 3/4" BSP M
FM 32 37 0.4-4
0.6-6		 1" BSP F 1" BSP M
FM 50 50 0.6-6
1-10
1.6-16 		2" BSP F 2" BSP M
FM 65 65 5-25
8-40
12-60 		2.5" BSP F 2.5" BSP M

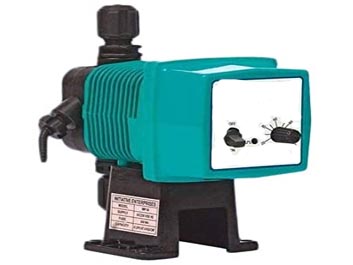

Dosing Pump

Dosing pump caters to a wide range of application including cleaning & hygienic, water treatment,industrial application, process.

Specification
  • 0.2 to 120 LPH Electromagnetic & motor driven pumps.
  • PVOF Pump head-Compatible with all chemicals
  • PTFE Diaphragm
  • Flow rate manualadjustment

Dosing Pump

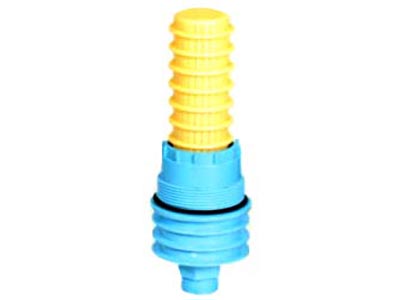

Vaccume Breaker

A vacuum breaker is an attachment that stops water from being sucked backward into the public drinking water system and is frequently seen on bibcock valves, toilet or urinal flush valves. This prevents contamination if the pressure in the public drinking water supply drops.

A vacuum breaker is made up of a plastic disc that is pushed forward by water pressure and closes small vent holes. If the supply pressure drops, the disc springs back, opening the vent holes (allowing outside air in) and preventing water backflow.

A more complex valve that accomplishes much the same purpose is the backflow preventer. Vacuum relief valves are sometimes known as vacuum breakers.

Vaccume Breaker

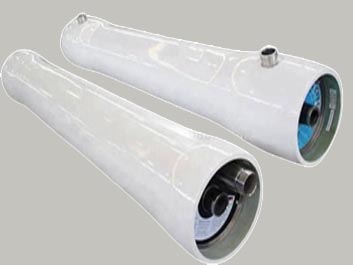

FRP RO Housing

Aventura, in collaboration with Wave Cyber, offers state-of-the-art membrane pressure tubes made from superior composite materials to protect the membranes from environmental deterioration.

These high precision engineered tubes and are made by using FRP winding technology and advanced manufacturing equipments to achieve highest integrity of the membrane pressure tubes smooth inner surface, accurate dimensions and precise tolerance. The pressure tubes have a wide range of pressure rating from 300 psi to 1200 psi.

FRP RO Housing

4” Membrane Pressure Tubes

  • Credible simple configuration
  • High strength, smooth inner surface and durable FRP shell
  • Polyurethane outer coating provides extra protection from environment
  • Insert plastic permeate port material
  • SS316 head locking baffle for simple and safe head assembly for 300 and 450 psi tubes, three turns locking ring design for 1000 psi tubes
Available pressure ratings (psi) 300, 450, 1000
Shell Material FRP
Length (No. of elements) 1 to 6


Side Port Type
Feed/ Concentrate Port Connection		 1” SS316 mechanical coupling for 300 and 450 psi tubes
1” duplex SS mechanical coupling for 1000 psi tubes
Permeate Port Connection 1/2” NPT or BSP


End Port Type
Feed/ Concentrate Port Connection		 3/4” or 1/2” FNPT or BSP PVC for 300 and 450 psi tubes
3/4” MNPT duplex steel for 1000 psi tubes
Permeate Port Connection 1/2” NPT or BSP
Available pressure ratings (psi) 150, 300, 450, 600, 1000, 1200
Shell Material FRP
Length (No. of elements) 1 to 8


Side Port Type
Feed/ Concentrate Port Connection		 1.5” MC (Standard), 2” MC and 2.5” MC, 3” MC
2 Side ports are offered as Standard, multi-port with different locking are available
Permeate Port Connection 1” PVC pipe union (Standard)


End Port Type
Feed/ Concentrate Port Connection		 1.5” MC (Standard)
3/4” MNPT duplex steel for 1000 psi tubes
Permeate Port Connection 1” PVC pipe union (Standard)

8” Membrane Pressure Tubes

  • Credible simple configuration
  • High strength and durable FRP shell
  • Polyurethane outer coating provides extra protection to environment
  • ABS permeate adaptor
  • SS316 three turn spiral lock ring for easy and safe head assembly
  • One piece molded lock thrust cone design reduces pressure drop with highest water flow
